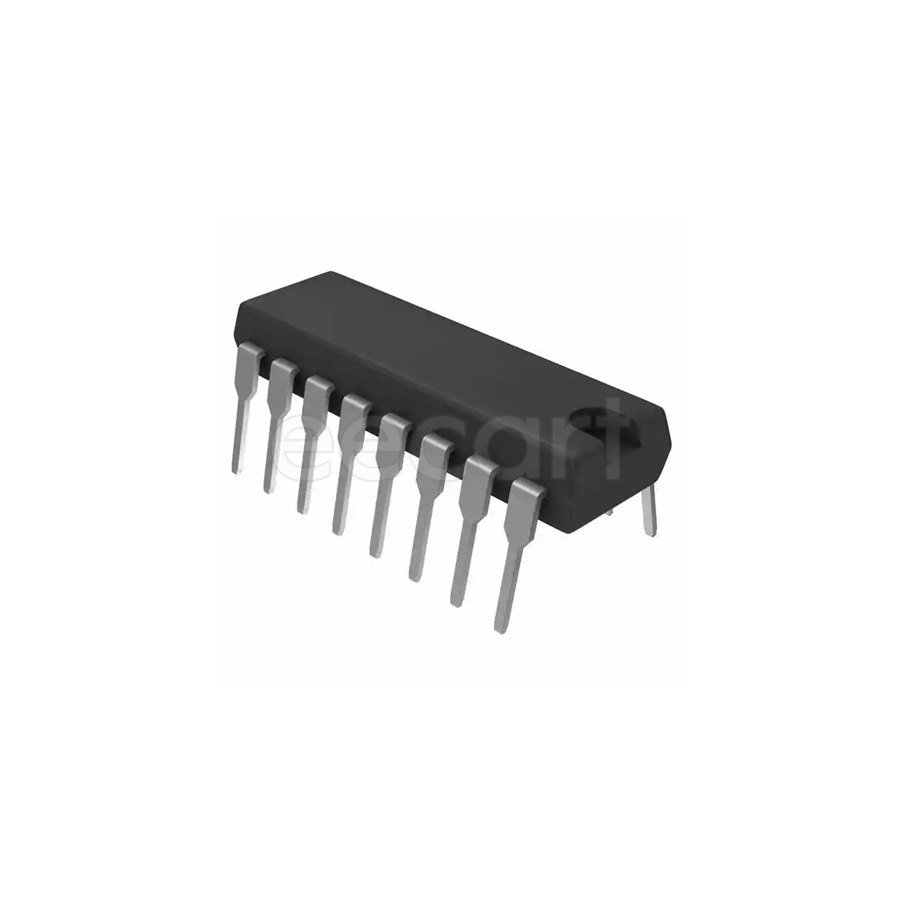

CD74HC365E
Manufacturer:
Texas Instruments
Mfr.Part #:
CD74HC365E
Datasheet:
Description:
Buffers, Drivers, Resceivers and Transceivers PDIP-16 Through Hole 3-State
| Parameter | Value |
|---|---|
| Length | 19.3 mm |
| Width | 6.35 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 16 |
| Height | 5.08 mm |
| Packaging | Tube |
| Thickness | 3.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Elements | 1 |
| Output Type | 3-State |
| Lifecycle Status | Production (Last Updated: 3 days ago) |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2 V |
| Number of Channels | 6 |
| Number of Bits | 6 |
| Turn-On Delay Time | 225 ns |
| Operating Supply Current | 80 µA |
| Quiescent Current | 8 µA |
| Propagation Delay | 225 ns |
| High Level Output Current | -7.8 mA |
| Low Level Output Current | 7.8 mA |
| Logic Function | Buffer, Inverting |
| Number of Inputs | 6 |
| Number of Bits per Element | 6 |
| Number of Outputs | 6 |
| Number of Input Lines | 6 |
| Number of Output Lines | 6 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
Stock: 536
Distributors
pcbx
pcbxUnit Price$0.67625
Ext.Price$0.67625
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.67625 | $0.67625 |
| 10 | $0.49159 | $4.91590 |
| 25 | $0.44456 | $11.11400 |
| 50 | $0.41813 | $20.90650 |
| 100 | $0.39327 | $39.32700 |
| 300 | $0.37309 | $111.92700 |
| 500 | $0.35394 | $176.97000 |
| 1000 | $0.34454 | $344.54000 |
